Specifications
| Engine | |

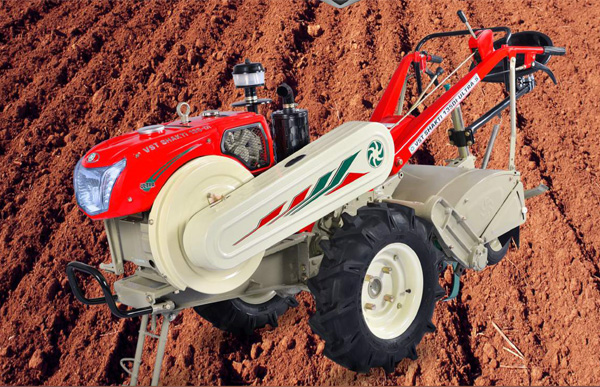

| Model | 135 DI |
| Type: | Horizontal 4 stroke/ Single cylinder water cooled Diesel engine O.H.V. |
| Combustion Chamber | Direct Injection (DI) |
| Max. Torque | 4.2 kh-m/ 16/v00rpm |
| Max. HP as per IS 13539 1996 | 13.0HP@2400 rpm |
| SFC ( Specific Fuel Cons) | 190g/hp/hr |
| Governor System | Mechanical, centrifugal type |
| Cooling System | Condenser type thermo siphon cooling System |
| Starting System | Hand Cranking |
| Lighting System | 12 volts/35 Watts |
| Std. Pulley (DIA) | 100mm/optional 120mm |
| Dry Weight | 125 kgs |
Specifications
| Engine | |

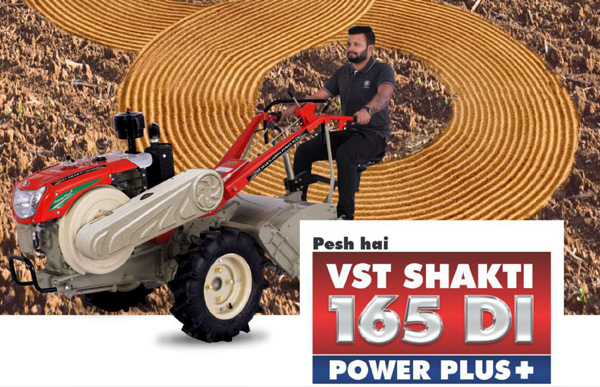

| Model | VST Shakti 165 DI |
| Type: | Water Cooled, Horizontal Single cylinder, 4 Stroke, DI Diesel engine |
| Combustion Chamber | Direct Injection |
| Bore X Stroke | 102 x 105 mm |
| Displacement | 0.857 liters |
| Compression Ratio: | 17.8 |
| Max. HP | 16 HP @2400 rpm |
| SFC | 190 gm / hr |
(Homologated and Certified on the basis of the Directive of the Council of European Communities. )
EEC Type-Approval Certificate No: e11-74/150 - 0012. Certificate Issued by: Vehicle Certification Agency (VCA), U.K.
| Specifications | |

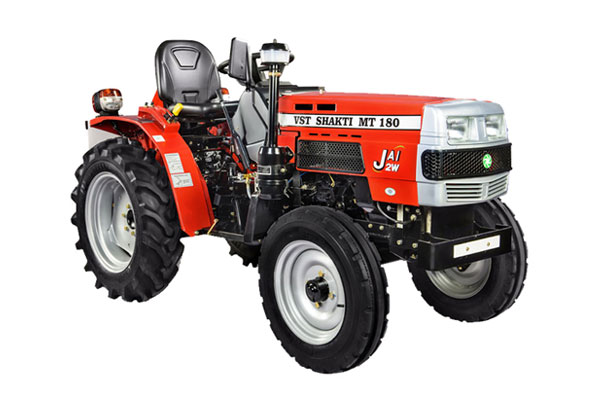

| 1. Engine | 3 Cylinder, Water cooled, OHV Mitsubishi Diesel engine - Model K3C |
| 2. Horse Power | 18.5/2700 RPM, SAE Displacement 900cc |
| 3. Transmission | Selective sliding gear type, with 6 forward and 2 reverse gears with differential lock. |
| 4. Traveling Speed | Min 1.2 Kmph; Max 14.5 Kmph at maximum engine RPM |
| 5. Turning Radius | W/O Brakes-2.6 mtrs. and W/Brakes-2.4 mtrs. |
| 6. P.T.O | 1-3/8" - SAE standard spline shaft |
| Technical Information | |
| Type of soil | Natural soft or hard soil, grass |
| Working depth | 50 mm |
| Working width | 200 mm |

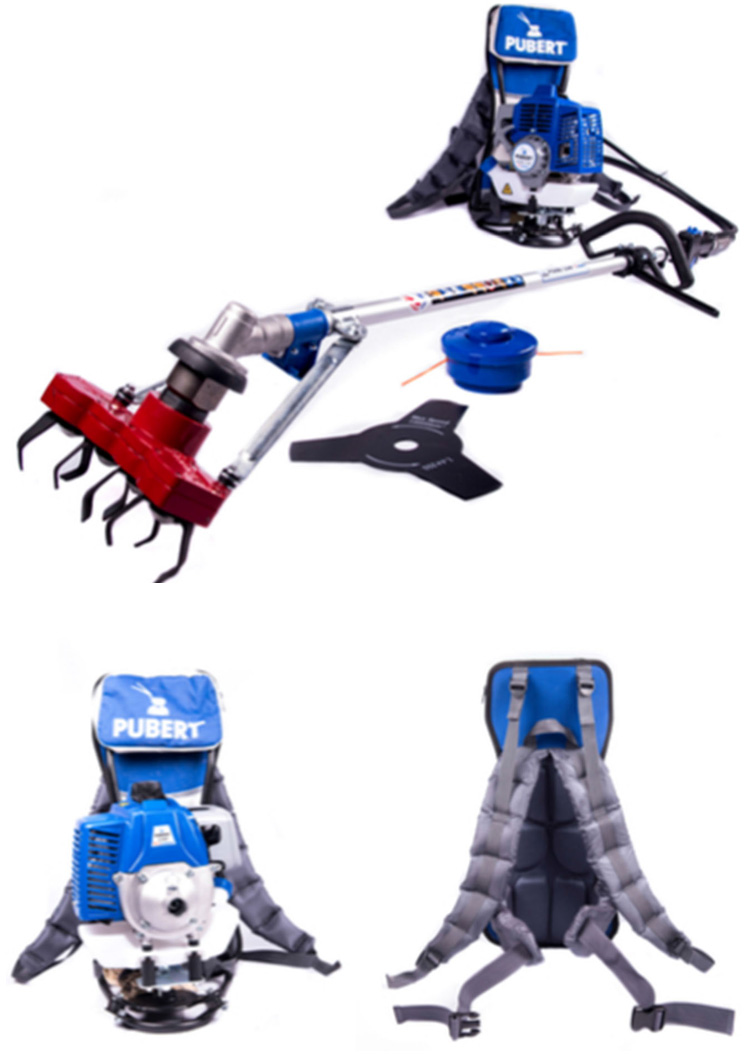

| Engine | Pubert P520BG |
| Displacement | 52 cc |
| Net Power | 1.50 kW/ 2 Hp |
| Weight | 13.8 Kg |
| Fuel Tank Capacity | 1 L |
| Tool rotation speed | 1750 rpm |
| Practical Information | |
| Packaging | Carton box |
| Box dimensions(lxbxh) | 125 x 250 x 160 mm |
| Code product | 8100020601 |
